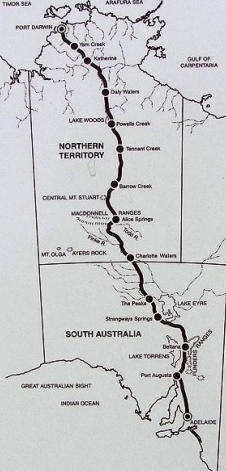

The Overland Telegraph Line

Overland Telegraph Line
Country	Australia
Start point	Port Augusta, South Australia
End point	Port Darwin, Northern Territory
Completion date	1872
Constructed by	South Australian Government under Charles Todd
Total length	Approximately 3,200 kilometres
Construction sections	Southern, Central, and Northern
Overseer	Charles Todd, Superintendent of Telegraphs
Significance	Connected Australia to global telegraph network; opened communication and settlement in central Australia
Status	Historical telecommunications route

The Overland Telegraph Line was a monumental communication project completed in 1872, linking Port Augusta in South Australia to Port Darwin in the Northern Territory, thereby connecting Australia to the rest of the world through an undersea cable to Java. The achievement marked the end of Australia’s isolation and was one of the most significant engineering feats of the 19th century. [1]

Origins and Planning

Before 1872, messages from Europe reached Australia only by sea, taking months. The concept of an overland telegraph arose from the need for rapid communication with Britain. The Scottish explorer John McDouall Stuart pioneered the central route from Adelaide to the north coast, which later became the path for the telegraph line. In 1863, South Australia annexed the Northern Territory from New South Wales specifically to construct the line. [2]

Authorization and Leadership

Construction was authorized in mid-1870 under Charles Todd, the South Australian Postmaster-General and Superintendent of Telegraphs. Todd’s management ensured the project’s completion despite enormous logistical challenges, including heat, distance, floods, and isolation. [3]

Construction Challenges

The 3,200 km line was divided into three main sections:


• Southern Section – Port Augusta to Macumba River, built by contractor E. M. Bagot.

• Central Section – Macumba to Tennant Creek, constructed by government work parties.

• Northern Section – Tennant Creek to Port Darwin, built by Derwent and Dalwood under contract.

The work began on 1 October 1870. The central section, thought to be the most difficult, faced severe conditions including heat, drought, and monsoonal rain. Despite delays, the project’s momentum was maintained through careful supply logistics. [4]

The northern section was particularly treacherous due to heavy rains and disease. Contractors’ failures led to the government taking direct control. Supplies were sent from Adelaide via steamer Omeo and barque St. Magnus*, but the wet season halted work. Eventually, new routes via the Roper River allowed materials to reach workers. The steamer *Young Australian* and Omeo delivered vital supplies through flooded terrain. [5]

Completion and Connection

By 22 August 1872, the southern and northern teams met at Frew’s Pond, completing the overland link. The final submarine cable between Java and Darwin was connected in October 1872. This officially ended Australia’s communication isolation. Messages could now travel between London and Adelaide in under ten days. [6]

The total cost of the line was approximately £480,000, nearly four times the original estimate, and five lives were lost during construction. [7]

Telegraph Stations

Eleven major repeater stations were established along the line at Beltana, Strangways Springs, The Peake, Charlotte Waters, Alice Springs, Barrow Creek, Tennant Creek, Powell’s Creek, Daly Waters, Katherine, and Yam Creek. Only Barrow Creek, Tennant Creek, and Alice Springs remain today. [8]


• Barrow Creek Station – Completed in August 1872, it was the site of an Aboriginal attack in 1874 where two telegraphists were killed. It later became a post and police station before closure in 1980.

• Tennant Creek Station – Established in 1874; closed in 1935 following gold discoveries.

• Alice Springs Station – Built in 1871 and became the main communication hub for central Australia. Named after Todd’s wife, it operated until 1932. [9]

Significance

The Overland Telegraph transformed Australia’s position in the world. It enabled real-time international communication, fostered economic growth, and encouraged settlement across the arid interior. It was also a symbol of colonial ambition and technical ingenuity, representing one of the first major infrastructure projects uniting southern and northern Australia. [10]

References

1. Ron McMullen, The Overland Telegraph, former Telegraphist, PMG Department, 2001, pp. 1–2.
2. Ron McMullen, The Overland Telegraph, 2001, pp. 3–5.
3. Ron McMullen, The Overland Telegraph, 2001, p. 6.
4. Ron McMullen, The Overland Telegraph, 2001, pp. 7–9.
5. Ron McMullen, The Overland Telegraph, 2001, pp. 10–13.
6. Ron McMullen, The Overland Telegraph, 2001, p. 15.
7. Ron McMullen, The Overland Telegraph, 2001, p. 16.
8. Ron McMullen, The Overland Telegraph, 2001, p. 17.
9. Ron McMullen, The Overland Telegraph, 2001, pp. 18–20.
10. Ron McMullen, The Overland Telegraph, 2001, pp. 21–23.
